Custom Screw Feeder

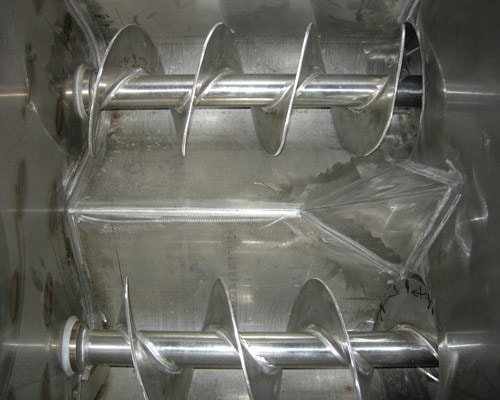

Reinke & Schomann, Inc. was chosen to fabricate this custom twin screw feeder profiled below, for a customer in the baking industry. This special feeder was a challenging design, ideal for our unique experience and capabilities. Utilizing our engineering services, a design was agreed upon that fit the requirements of the customer. Our advanced in-house machining equipment was employed to form stainless steel into the specified contours and dimensions, with in-process inspections and testing carried out to ensure dimensional accuracy. The fit of the screws was also extensively checked in the hopper, to verify there would be no interference inside of the housing.

Click to Expand

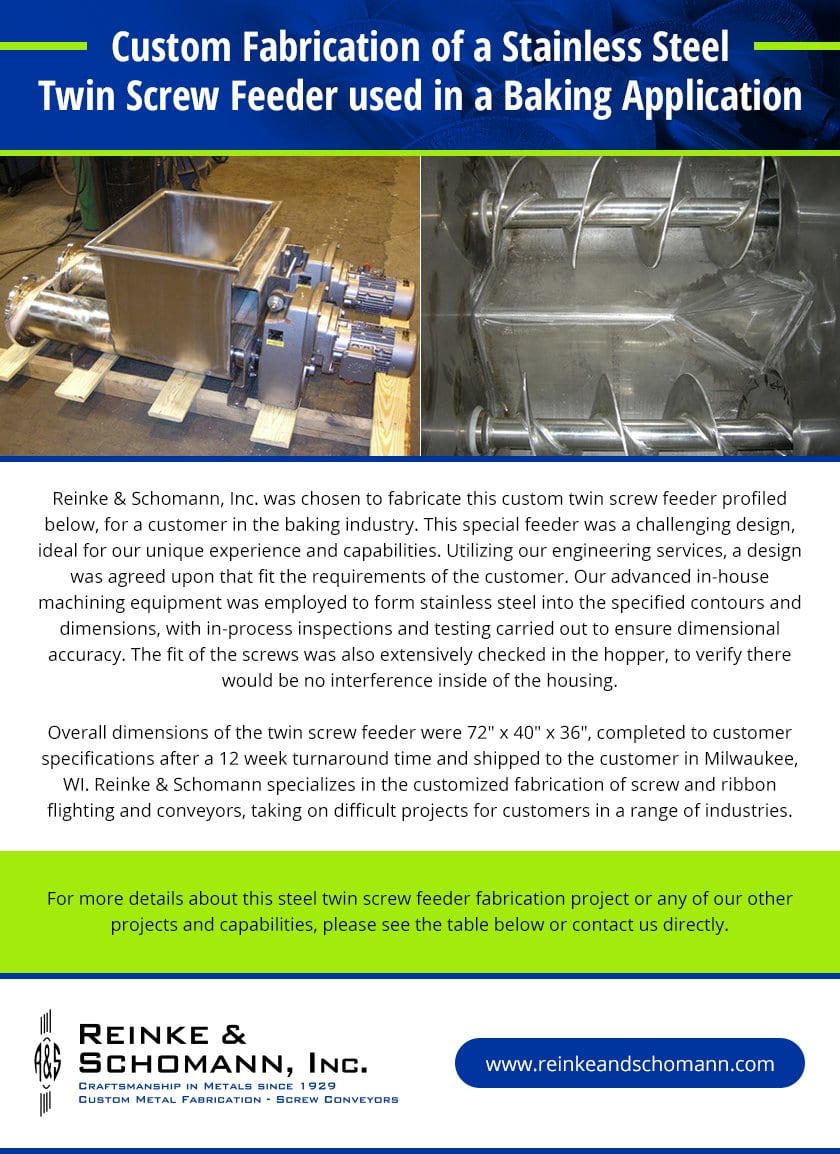

Custom Fabrication of a Stainless Steel Twin Screw Feeder used in a Baking Application

Overall dimensions of the twin screw feeder were 72″ x 40″ x 36″, completed to customer specifications after a 12 week turnaround time and shipped to the customer in Milwaukee, WI. Reinke & Schomann specializes in the customized fabrication of screw and ribbon flighting and conveyors, taking on difficult projects for customers in a range of industries. For more details about this steel twin screw feeder fabrication project or any of our other projects and capabilities, please see the table below or contact us directly.

Showcased Projects

Reinke & Schomann, Inc. compiled a few selected project examples which demonstrate our capabilities and services. Click on the links below to view more information about the project.


Product Description
Fabrication of steel twin screw feeders
Capabilities Applied/Processes
Engineering Services
Overall Part Dimensions
72″ x 40″ x 36″
Tightest Tolerances
(+/-) .03″
Stainless Steel
Material Finish
In process testing/inspection performed
  • All dimensions checked
  • Close fit screws in hopper to verify no interference in housing
Industry for Use
Delivery/Turnaround Time
12 weeks
Delivery Location
Milwaukee, WI
Standards Met
Customer Specifications, 2D CAD Drawing
Product Name
Twin Screw Feeder
