Since 1929, at Reinke & Schomann, Inc. we have been recognized for our high quality craftsmanship of screw conveyors, sectional flights, ribbon flights, and other specialty fabricated metal items. The project highlighted here outlines a fabricated custom spiral ribbon flighting that is utilized in a range of industrial applications, including wastewater treatment plants and industrial mixers. Starting with 304 stainless steel, our bending and rolling processes are employed along with certified welding methods to create the flighting, holding the tightest tolerance of ±.0625”.
We have the capabilities to manufacture rolled bar spirals to sizes 0.75” x 6” or larger depending on the application, and skimmer blade sizes are typically 0.25 x 3 bar with 2” wide blade retainers. Fabricated units are dimensionally tested to drawings for ensured accuracy and integrity. The turnaround time for custom spiral ribbon flighting is typically 6 weeks, fabricated to customer specifications and upholding the highest industry standards. For more details about our custom spiral flighting capabilities or the other metal manufacturing abilities available, please see the table below or contact us directly.
Reinke & Schomann, Inc. compiled a few selected project examples which demonstrate our capabilities and services. Click on the links below to view more information about the project.

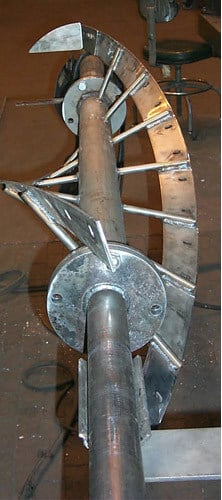

Custom Spiral Ribbon Flighting Project Showcase
- Capabilities Applied/Processes
- Overall Part Dimensions
- Rolled bar spirals can be 0.75″ x 6″ or larger in some applications
Skimmer blades are typically 0.25 x 3 bar with 2″ wide blade retainers
- Tightest Tolerances
- 304 Stainless Steel
- In process testing/inspection performed
- Dimensional inspection to drawings
- Industry for Use
- Wastewater treatment plants
- Lead Time
- 2 weeks
- Delivery/Turnaround Time
- 6 weeks
- Delivery Location
- Standards Met
- Customer Specifications, 2D CAD Drawing
- Product Name
- Spiral Ribbon Flighting
